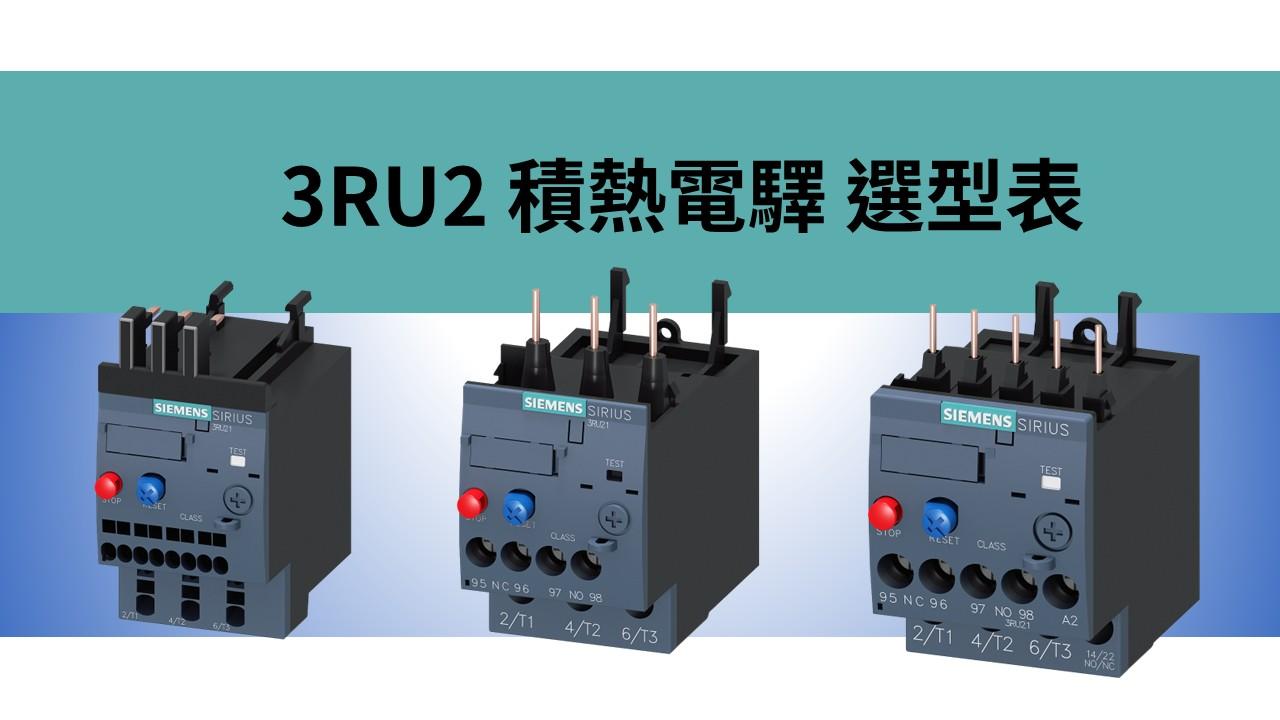

3RU2 積熱電驛 選型表
11月 29, 2024 西門子(SIEMENS)

3RU2 積熱電驛 選型表



3RU2 積熱電驛 - 3RT2接觸器安裝版本
  • 過載與欠相保護
  • 輔助接點 1 個常開 + 1 個常閉
  • 手動和自動重置
  • 開關位置指示器
  • 測試功能
  • 停止按鈕
  • 可密封蓋（選購配件
Trip
class		 三相馬達
額定功率		 過載電流 保險絲
(協調2)		 螺絲端子
料號		 插入式(彈簧)端子
料號
CLASS KW A A
SIZE S00
10 0.04 0.11 ... 0.16 0.5 3RU2116-0AB0 3RU2116-0AC0
10 0.06 0.14 ... 0.2 1 3RU2116-0BB0 3RU2116-0BC0
10 0.06 0.18 ... 0.25 1 3RU2116-0CB0 3RU2116-0CC0
10 0.09 0.22 ... 0.32 1.6 3RU2116-0DB0 3RU2116-0DC0
10 0.09 0.28 ... 0.4 2 3RU2116-0EB0 3RU2116-0EC0
10 0.12 0.35 ... 0.5 2 3RU2116-0FB0 3RU2116-0FC0
10 0.18 0.45 ... 0.63 2 3RU2116-0GB0 3RU2116-0GC0
10 0.18 0.55 ... 0.8 2 3RU2116-0HB0 3RU2116-0HC0
10 0.25 0.7 ... 1 4 3RU2116-0JB0 3RU2116-0JC0
10 0.37 0.9 ... 1.25 4 3RU2116-0KB0 3RU2116-0KC0
10 0.55 1.1 ... 1.6 6 3RU2116-1AB0 3RU2116-1AC0
10 0.75 1.4 ... 2 6 3RU2116-1BB0 3RU2116-1BC0
10 0.75 1.8 ... 2.5 10 3RU2116-1CB0 3RU2116-1CC0
10 1.1 2.2 ... 3.2 10 3RU2116-1DB0 3RU2116-1DC0
10 1.5 2.8 ... 4 16 3RU2116-1EB0 3RU2116-1EC0
10 1.5 3.5 ... 5 20 3RU2116-1FB0 3RU2116-1FC0
10 2.2 4.5 ... 6.3 20 3RU2116-1GB0 3RU2116-1GC0
10 3 5.5 ... 8 25 3RU2116-1HB0 3RU2116-1HC0
10 4 7 ... 10 35 3RU2116-1JB0 3RU2116-1JC0
10 5.5 9 ... 12.5 35 3RU2116-1KB0 3RU2116-1KC0
10 7.5 11 ... 16 40 3RU2116-4AB0 3RU2116-4AC0
SIZE S0
10 0.75 1.8 ... 2.5 10 3RU2126-1CB0 3RU2126-1CC0
10 1.1 2.2 ... 3.2 10 3RU2126-1DB0 3RU2126-1DC0
10 1.5 2.8 ... 4 16 3RU2126-1EB0 3RU2126-1EC0
10 1.5 3.5 ... 5 20 3RU2126-1FB0 3RU2126-1FC0
10 2.2 4.5 ... 6.3 20 3RU2126-1GB0 3RU2126-1GC0
10 3 5.5 ... 8 25 3RU2126-1HB0 3RU2126-1HC0
10 4 7 ... 10 35 3RU2126-1JB0 3RU2126-1JC0
10 5.5 9 ... 12.5 35 3RU2126-1KB0 3RU2126-1KC0
10 7.5 11 ... 16 40 3RU2126-4AB0 3RU2126-4AC0
10 7.5 14 ... 20 50 3RU2126-4BB0 3RU2126-4BC0
10 11 17 ... 22 63 3RU2126-4CB0 3RU2126-4CC0
10 11 20 ... 25 63 3RU2126-4DB0 3RU2126-4DC0
10 15 23 ... 28 63 3RU2126-4NB0 3RU2126-4NC0
10 15 27 ... 32 80 3RU2126-4EB0 3RU2126-4EC0
10 18.5 30 ... 36 80 3RU2126-4PB0 3RU2126-4PC0
10 18.5 34 ... 40 80 3RU2126-4FB0 3RU2126-4FC0
SIZE S2
10 3 5.5 ... 8 25 3RU2136-1HB0 3RU2136-1HD0
10 4 7 ... 10 35 3RU2136-1JB0 3RU2136-1JD0
10 5.5 9 ... 12.5 35 3RU2136-1KB0 3RU2136-1KD0
10 7.5 11 ... 16 40 3RU2136-4AB0 3RU2136-4AD0
10 7.5 14 ... 20 50 3RU2136-4BB0 3RU2136-4BD0
10 11 18 ... 25 63 3RU2136-4DB0 3RU2136-4DD0
10 15 22 ... 32 80 3RU2136-4EB0 3RU2136-4ED0
10 18.5 28 ... 40 80 3RU2136-4FB0 3RU2136-4FD0
10 22 36 ... 45 100 3RU2136-4GB0 3RU2136-4GD0
10 22 40 ... 50 100 3RU2136-4HB0 3RU2136-4HD0
10 30 40 ... 50 100 3RU2136-4QB0 3RU2136-4QD0
10 30 54 ... 65 125 3RU2136-4JB0 3RU2136-4JD0
10 37 62 ... 73 160 3RU2136-4KB0 3RU2136-4KD0
10 37 70 ... 80 160 3RU2136-4RB0 3RU2136-4RD0
SIZE S3
10 18.5 28 ... 40 80 3RU2146-4FB0 3RU2146-4FD0
10 22 36 ... 50 125 3RU2146-4HB0 3RU2146-4HD0
10 30 45 ... 63 125 3RU2146-4JB0 3RU2146-4JD0
10 37 57 ... 75 160 3RU2146-4KB0 3RU2146-4KD0
10 45 70 ... 90 160 3RU2146-4LB0 3RU2146-4LD0
10 45 80 ... 100 160 3RU2146-4MB0 3RU2146-4MD0



3RU2 積熱電驛 - 獨立安裝版本
  • 過載與欠相保護
  • 輔助接點 1 個常開 + 1 個常閉
  • 手動和自動重置
  • 開關位置指示器
  • 測試功能
  • 停止按鈕
  • 可密封蓋（選購配件
Trip
class		 三相馬達
額定功率		 過載電流 保險絲
(協調2)		 螺絲端子
料號		 插入式(彈簧)端子
料號
CLASS KW A A
SIZE S00
10 0.04 0.11 ... 0.16 0.5 3RU2116-0AB1 3RU2116-0AC1
10 0.06 0.14 ... 0.2 1 3RU2116-0BB1 3RU2116-0BC1
10 0.06 0.18 ... 0.25 1 3RU2116-0CB1 3RU2116-0CC1
10 0.09 0.22 ... 0.32 1.6 3RU2116-0DB1 3RU2116-0DC1
10 0.09 0.28 ... 0.4 2 3RU2116-0EB1 3RU2116-0EC1
10 0.12 0.35 ... 0.5 2 3RU2116-0FB1 3RU2116-0FC1
10 0.18 0.45 ... 0.63 2 3RU2116-0GB1 3RU2116-0GC1
10 0.18 0.55 ... 0.8 2 3RU2116-0HB1 3RU2116-0HC1
10 0.25 0.7 ... 1 4 3RU2116-0JB1 3RU2116-0JC1
10 0.37 0.9 ... 1.25 4 3RU2116-0KB1 3RU2116-0KC1
10 0.55 1.1 ... 1.6 6 3RU2116-1AB1 3RU2116-1AC1
10 0.75 1.4 ... 2 6 3RU2116-1BB1 3RU2116-1BC1
10 0.75 1.8 ... 2.5 10 3RU2116-1CB1 3RU2116-1CC1
10 1.1 2.2 ... 3.2 10 3RU2116-1DB1 3RU2116-1DC1
10 1.5 2.8 ... 4 16 3RU2116-1EB1 3RU2116-1EC1
10 1.5 3.5 ... 5 20 3RU2116-1FB1 3RU2116-1FC1
10 2.2 4.5 ... 6.3 20 3RU2116-1GB1 3RU2116-1GC1
10 3 5.5 ... 8 25 3RU2116-1HB1 3RU2116-1HC1
10 4 7 ... 10 35 3RU2116-1JB1 3RU2116-1JC1
10 5.5 9 ... 12.5 35 3RU2116-1KB1 3RU2116-1KC1
10 7.5 11 ... 16 40 3RU2116-4AB1 3RU2116-4AC1
SIZE S01
10 7.5 14 ... 20 50 3RU2126-4BB1 3RU2126-4BC1
10 11 17 ... 22 63 3RU2126-4CB1 3RU2126-4CC1
10 11 20 ... 25 63 3RU2126-4DB1 3RU2126-4DC1
10 15 23 ... 28 63 3RU2126-4NB1 3RU2126-4NC1
10 15 27 ... 32 80 3RU2126-4EB1 3RU2126-4EC1
10 18.5 30 ... 36 80 3RU2126-4PB1 3RU2126-4PC1
10 18.5 34 ... 40 80 3RU2126-4FB1 3RU2126-4FC1
SIZE S2
10 15 22 ... 32 80 3RU2136-4EB1 3RU2136-4ED1
10 18.5 28 ... 40 80 3RU2136-4FB1 3RU2136-4FD1
10 22 36 ... 45 100 3RU2136-4GB1 3RU2136-4GD1
10 22 40 ... 50 100 3RU2136-4HB1 3RU2136-4HD1
10 30 47 ... 57 100 3RU2136-4QB1 3RU2136-4QD1
10 30 54 ... 65 125 3RU2136-4JB1 3RU2136-4JD1
10 37 62 ... 73 160 3RU2136-4KB1 3RU2136-4KD1
10 37 70 ... 80 160 3RU2136-4RB1 3RU2136-4RD1
SIZE S3
10 30 45 ... 63 125 3RU2146-4JB1 3RU2146-4JD1
10 37 57 ... 75 160 3RU2146-4KB1 3RU2146-4KD1
10 45 70 ... 90 160 3RU2146-4LB1 3RU2146-4LD1
10 45 80 ... 100 160 3RU2146-4MB1 3RU2146-4MD1
