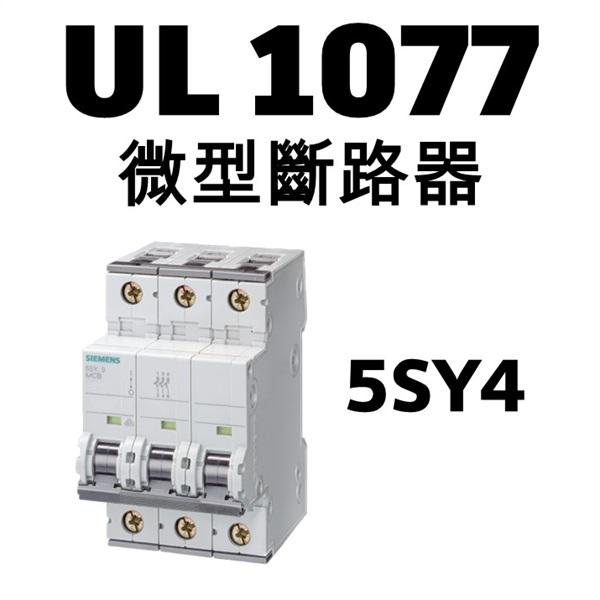

UL 1077 微型斷路器 (MCB) - 5SY4系列

UL 1077 微型斷路器 (MCB) - 5SY4系列

西門子 5SY4 微型斷路器 (MCB)  -  10KA
  1P 1P + N
    額定電壓Un         230/400 VAC         230 VAC




特性曲線 特性曲線
    額定電流In         A         B         C         D         A         B         C         D
0.3 A - - 5SY4114-7 5SY4114-8 - - 5SY4514-7 5SY4514-8
0.5A 5SY4105-5 - 5SY4105-7 5SY4105-8 - - 5SY4505-7 5SY4505-8
1A 5SY4101-5 5SY4101-6 5SY4101-7 5SY4101-8 5SY4501-5 - 5SY4501-7 5SY4501-8
1.6A 5SY4115-5 5SY4115-6 5SY4115-7 5SY4115-8 5SY4515-5 5SY4515-6 5SY4515-7 5SY4515-8
2 A 5SY4102-5 5SY4102-6 5SY4102-7 5SY4102-8 5SY4502-5 - 5SY4502-7 5SY4502-8
3 A 5SY4103-5 5SY4103-6 5SY4103-7 5SY4103-8 5SY4503-5 - 5SY4503-7 5SY4503-8
4 A 5SY4104-5 5SY4104-6 5SY4104-7 5SY4104-8 5SY4504-5 5SY4504-6 5SY4504-7 5SY4504-8
5 A - - 5SY4111-7 - - - - -
6 A 5SY4106-5 5SY4106-6 5SY4106-7 5SY4106-8 5SY4506-5 5SY4506-6 5SY4506-7 5SY4506-8
8 A 5SY4108-5 5SY4108-6 5SY4108-7 5SY4108-8 5SY4508-5 - 5SY4508-7 5SY4508-8
10 A 5SY4110-5 5SY4110-6 5SY4110-7 5SY4110-8 5SY4510-5 5SY4510-6 5SY4510-7 5SY4510-8
13 A 5SY4113-5 5SY4113-6 5SY4113-7 5SY4113-8 5SY4513-5 5SY4513-6 5SY4513-7 5SY4513-8
15 A - - 5SY4118-7 - - - - -
16 A 5SY4116-5 5SY4116-6 5SY4116-7 5SY4116-8 5SY4516-5 5SY4516-6 5SY4516-7 5SY4516-8
20 A 5SY4120-5 5SY4120-6 5SY4120-7 5SY4120-8 5SY4520-5 5SY4520-6 5SY4520-7 5SY4520-8
25 A 5SY4125-5 5SY4125-6 5SY4125-7 5SY4125-8 5SY4525-5 5SY4525-6 5SY4525-7 5SY4525-8
30 A - - 5SY4130-7 - - - - -
32 A 5SY4132-5 5SY4132-6 5SY4132-7 5SY4132-8 5SY4532-5 5SY4532-6 5SY4532-7 5SY4532-8
35 A - - 5SY4135-7 - - - - -
40 A 5SY4140-5 5SY4140-6 5SY4140-7 5SY4140-8 5SY4540-5 5SY4540-6 5SY4540-7 5SY4540-8
45 A - - 5SY4145-7 - - - - -
50 A 5SY4150-5 5SY4150-6 5SY4150-7 5SY4150-8 5SY4550-5 5SY4550-6 5SY4550-7 5SY4550-8
60 A - - 5SY4160-7 - - - - -
63 A 5SY4163-5 5SY4163-6 5SY4163-7 5SY4163-8 5SY4563-5 5SY4563-6 5SY4563-7 5SY4563-8
80 A - 5SY4180-6 5SY4180-7 - - - 5SY4580-7 -
  2P  3P
    額定電壓Un     400 VAC 400VAC


特性曲線 特性曲線
    額定電流In         A         B         C         D         A         B         C         D
0.3A - - 5SY4214-7 5SY4214-8 - - 5SY4314-7 5SY4314-8
0.5A 5SY4205-5 - 5SY4205-7 5SY4205-8 5SY4305-5 - 5SY4305-7 5SY4305-8
1A 5SY4201-5 5SY4201-6 5SY4201-7 5SY4201-8 5SY4301-5 5SY4301-6 5SY4301-7 5SY4301-8
1.6A 5SY4215-5 5SY4215-6 5SY4215-7 5SY4215-8 5SY4315-5 5SY4315-6 5SY4315-7 5SY4315-8
2 A 5SY4202-5 5SY4202-6 5SY4202-7 5SY4202-8 5SY4302-5 5SY4302-6 5SY4302-7 5SY4302-8
3 A 5SY4203-5 5SY4203-6 5SY4203-7 5SY4203-8 5SY4303-5 5SY4303-6 5SY4303-7 5SY4303-8
4 A 5SY4204-5 5SY4204-6 5SY4204-7 5SY4204-8 5SY4304-5 5SY4304-6 5SY4304-7 5SY4304-8
5 A - - 5SY4211-7 - - - 5SY4311-7 -
6 A 5SY4206-5 5SY4206-6 5SY4206-7 5SY4206-8 5SY4306-5 5SY4306-6 5SY4306-7 5SY4306-8
8 A 5SY4208-5 5SY4208-6 5SY4208-7 5SY4208-8 5SY4308-5 5SY4308-6 5SY4308-7 5SY4308-8
10 A 5SY4210-5 5SY4210-6 5SY4210-7 5SY4210-8 5SY4310-5 5SY4310-6 5SY4310-7 5SY4310-8
13 A 5SY4213-5 5SY4213-6 5SY4213-7 5SY4213-8 5SY4313-5 5SY4313-6 5SY4313-7 5SY4313-8
15 A - - 5SY4218-7 - - - 5SY4318-7 -
16 A 5SY4216-5 5SY4216-6 5SY4216-7 5SY4216-8 5SY4316-5 5SY4316-6 5SY4316-7 5SY4316-8
20 A 5SY4220-5 5SY4220-6 5SY4220-7 5SY4220-8 5SY4320-5 5SY4320-6 5SY4320-7 5SY4320-8
25 A 5SY4225-5 5SY4225-6 5SY4225-7 5SY4225-8 5SY4325-5 5SY4325-6 5SY4325-7 5SY4325-8
30 A - - 5SY4230-7 - - - 5SY4330-7 -
32 A 5SY4232-5 5SY4232-6 5SY4232-7 5SY4232-8 5SY4332-5 5SY4332-6 5SY4332-7 5SY4332-8
35 A - - 5SY4235-7 - - - 5SY4335-7 -
40 A 5SY4240-5 5SY4240-6 5SY4240-7 5SY4240-8 5SY4340-5 5SY4340-6 5SY4340-7 5SY4340-8
45 A - - 5SY4245-7 - - - 5SY4345-7 -
50 A 5SY4250-5 5SY4250-6 5SY4250-7 5SY4250-8 5SY4350-5 5SY4350-6 5SY4350-7 5SY4350-8
60 A - - 5SY4260-7 - - - 5SY4360-7 -
63 A 5SY4263-5 5SY4263-6 5SY4263-7 5SY4263-8 5SY4363-5 5SY4363-6 5SY4363-7 5SY4363-8
80 A - 5SY4280-6 5SY4280-7 - - 5SY4380-6 5SY4380-7 -
  3P + N 4P
額定電壓Un 400VAC 400VAC

  特性曲線 特性曲線
額定電流In     A         B         C         D         A         B         C         D
0.3A - - 5SY4614-7 5SY4614-8 - - 5SY4414-7 5SY4414-8
0.5A - - 5SY4605-7 5SY4605-8 - - 5SY4405-7 5SY4405-8
1A 5SY4601-5 - 5SY4601-7 5SY4601-8 5SY4401-5 - 5SY4401-7 5SY4401-8
1.6A 5SY4615-5 - 5SY4615-7 5SY4615-8 5SY4415-5 - 5SY4415-7 5SY4415-8
2 A 5SY4602-5 - 5SY4602-7 5SY4602-8 5SY4402-5 - 5SY4402-7 5SY4402-8
3 A 5SY4603-5 - 5SY4603-7 5SY4603-8 5SY4403-5 - 5SY4403-7 5SY4402-8
4 A 5SY4604-5 - 5SY4604-7 5SY4604-8 5SY4404-5 - 5SY4404-7 5SY4404-8
5 A - - - - - - - -
6 A 5SY4606-5 5SY4606-6 5SY4606-7 5SY4606-8 5SY4406-5 5SY4406-6 5SY4406-7 5SY4406-8
8 A 5SY4608-5 - 5SY4608-7 5SY4608-8 5SY4408-5 - 5SY4408-7 5SY4408-8
10 A 5SY4610-5 5SY4610-6 5SY4610-7 5SY4610-8 5SY4410-5 5SY4410-6 5SY4410-7 5SY4410-8
13 A 5SY4613-5 5SY4613-6 5SY4613-7 5SY4613-8 5SY4413-5 5SY4413-6 5SY4413-7 5SY4413-8
15 A - - - - - - - -
16 A 5SY4616-5 5SY4616-6 5SY4616-7 5SY4616-8 5SY4416-5 5SY4416-6 5SY4416-7 5SY4416-8
20 A 5SY4620-5 5SY4620-6 5SY4620-7 5SY4620-8 5SY4420-5 5SY4420-6 5SY4420-7 5SY4420-8
25 A 5SY4625-5 5SY4625-6 5SY4625-7 5SY4625-8 5SY4425-5 5SY4425-6 5SY4425-7 5SY4425-8
30 A - - - - - - - -
32 A 5SY4632-5 5SY4632-6 5SY4632-7 5SY4632-8 5SY4432-5 5SY4432-6 5SY4432-7 5SY4432-8
35 A - - - - - - - -
40 A 5SY4640-5 5SY4640-6 5SY4640-7 5SY4640-8 5SY4440-5 5SY4440-6 5SY4440-7 5SY4440-8
45 A - - - - - - - -
50 A 5SY4650-5 5SY4650-6 5SY4650-7 5SY4650-8 5SY4450-5 5SY4450-6 5SY4450-7 5SY4450-8
60 A - - - - - - - -
63 A 5SY4663-5 5SY4663-6 5SY4663-7 5SY4663-8 5SY4463-5 5SY4463-6 5SY4463-7 5SY4463-8
80 A - - 5SY4680-7 - - 5SY4480-6 5SY4480-7 -
輔助開關 (AS) 料號 電弧故障檢測單元  (AFDD) 料號
1 NO +
1 NC		 Standard 5ST3010   For basic units 1P+N In up to 16 A 5SM6021-2
For low power 5ST3013   In up to 40 A 5SM6024-2
For low power (with diode) 5ST3013-0XX01   欠壓跳脫 (UR) 料號
2 NO Standard 5ST3011   帶接點 230 V AC 5ST3040
For low power 5ST3014   110 V DC 5ST3041
2 NC Standard 5ST3012   24 V DC 5ST3042
For low power 5ST3015   不帶接點 230 V AC 5ST3043
1 CO Standard 5ST3016   110 V DC 5ST3044
故障訊號接點 (FC) 料號   24 V DC 5ST3045
1 NO + 1 NC 5ST3020   遠端控制機制(RC mech.) 料號
2 NO 5ST3021   Basic 12 ... 30 V AC, 12 ... 48 V DC 5ST3053
2 NC 5ST3022   177 … 270 V AC 5ST3054
輔助開關和故障訊號觸點 (AS+FC) 料號   Power 12 ... 30 V AC, 12 ... 48 V DC 5ST3055
1 CO (AS) + 1 CO (FC) 5ST3062   177 … 270 V AC 5ST3056
5ST3 COM (AS+FC) 5ST3062-0MC   Power with ARD 12 ... 30 V AC, 12 ... 48 V DC 5ST3057
遠端跳脫 (ST) 料號   177 … 270 V AC 5ST3058
110 … 415 V AC, 110 … 220 V DC 5ST3030   Power with extended
function		 12 ... 30 V AC, 12 ... 48 V DC 5ST3070
24 … 48 V AC/DC 5ST3031   170 … 277 V AC, 77 … 286 V DC 5ST3071
12 V DC 5ST3031-0XX01   遠端控制機制適配器(RC mech.) 料號
        1 … 2 MW 5ST3820-1
        3 … 4 MW 5ST3820-2
